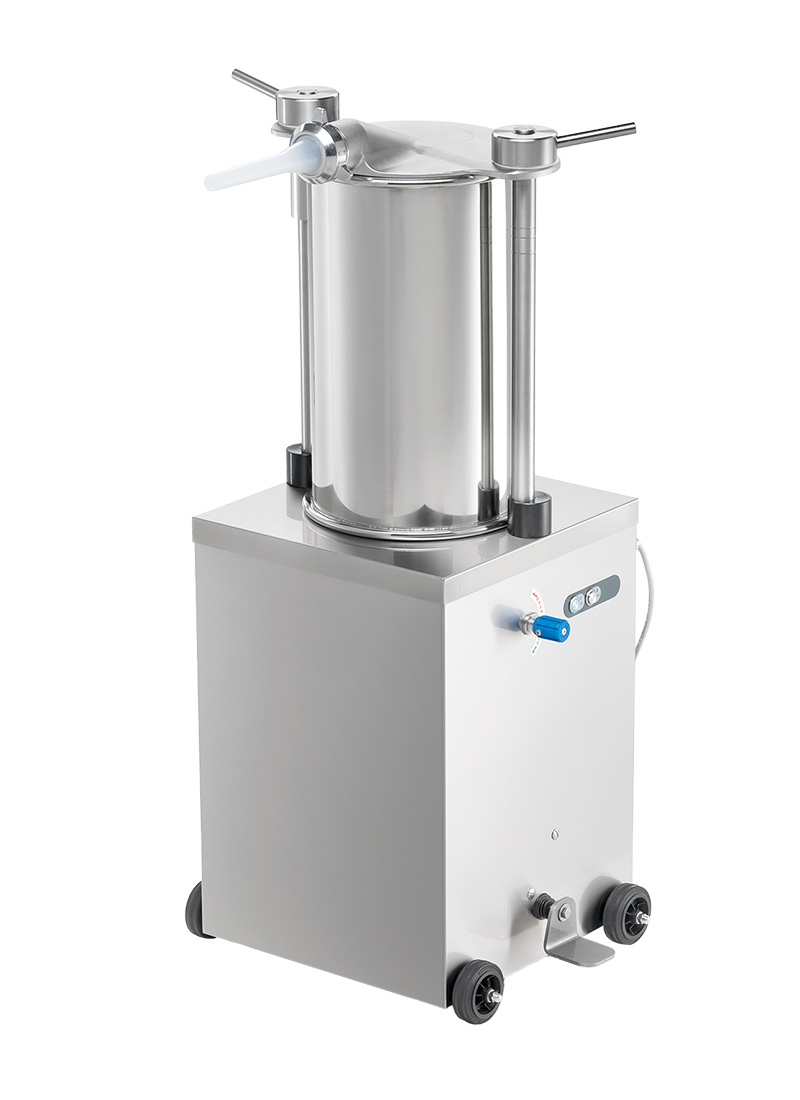

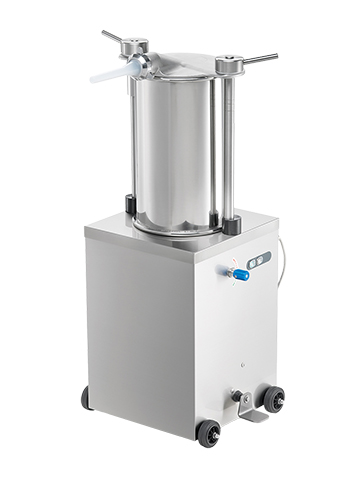

Stainless steel vertical hydraulic sausage filler INS24H

	Stainless steel vertical hydraulic sausage filler INS24H

The machine is equipped with a hydraulic control unit that manages the movement of the piston. The upward speed is adjustable so that any type of product can be bagged. Equipped with a pressure gauge to check the pressure.

TECHNICAL FEATURES

Cylinder capacity 25 l
Power supply:
- Three-phase: 380V/50Hz
- Single-phase: 230V/50Hz
Power 0.56 kW - Hp 0.75
Adjustable emptying speed
Piston return time 32 s
Weight 91kg
Dimensions (lxpxh) 565 x 450 x 1160 mm

Available versions

	Code	Description
	INS24H	Three-phase 25 litre vertical hydraulic filling machine

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
